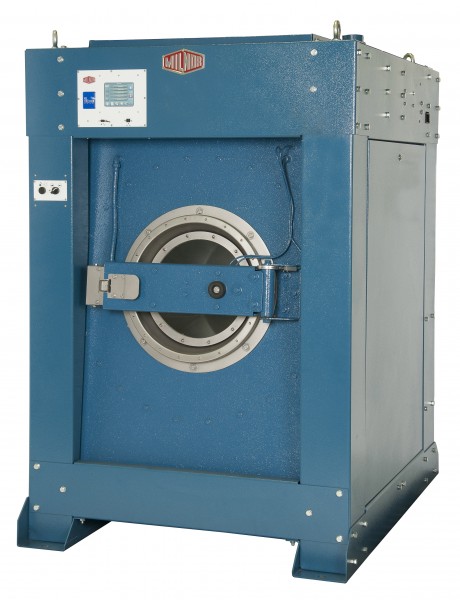

The Milnor Model 36026X8R provides multiple ways to save on your labor costs and improve employee efficiency, including:
This is an enhanced version of the MilTouch control, which utilizes resistive touch screen technology and full VGA resolution. The clear and informative display shows current machine status info including total, formula time, and time elapsed. With complete programming flexibility, MilTouch-EX™ touchscreen control formulas can be developed on a PC, saved to USB external memory and uploaded with a screen touch. The control has intuitive fault diagnosis and relevant troubleshooting suggestions, which streamlines employee training and eliminates operator guesswork. The 15 chemical signals and MilTouch-EX control allow the user complete access to the machine's function at every level and wash/rinse step (within safety limits). The MilTouch-EX control can be interfaced with specialized options such as metered water and integrated reuse tanks.
Overnight Bath Soak
The 36026X8R overnight soak option eliminates the need for additional washes and production delays during shifts thanks to the extended time the stains are immersed in standing baths.
RinSave® Water Saver
This innovative process facilitates significantly shorter formulas by eliminating up to two complete rinses per formula. This means the linens are processed faster because fewer steps are needed.
Save on Linen Replacement Costs
The second highest expense of a laundry is the cost of linen. The Milnor 36026X8R can help you to extend linen life:
Safe Chemical Injection System
Chemicals are injected in the rear of the machine (unlike certain brands where chemicals are injected near the front of the machine at eye-level). Chemicals are diluted and flushed into the sump of the washer-extractor so that raw chemical does not come in direct contact with the linen or the stainless steel. All X-Series washer-extractors have 16 chemical ports and 15 chemical signals standard.
Proper Basket Design
Spacious wash cylinders provide more room for lift and drop action and for goods to open up and absorb wash and rinse water - ensuring goods get clean the first time, reducing rewashes.
A Milnor 36026X8R can help to reduce your utility bills with its:
Proper Cylinder Design
Milnor's bigger cylinder perforations provide better wash quality by promoting excellent interchange of the goods with water and chemistry, better rinsing by allowing rinse water to freely interact with the goods, and better extraction by allowing water to escape from goods easily and quickly. All components work together to ensure fewer costly rewashes and less drying time.
Reliable High 300 G-Force Extraction
Since the washer reaches 300 Gs each and every commanded time, more water is removed consistently from each load, resulting in shorter drying times - operating your dryer less each day can save hundreds of dollars per year in dryer fuel consumption and time.
RinSave® Water Saver
This innovative process facilitates significantly shorter formulas by eliminating up to two complete rinses per formula. This means fewer cycles and faster turnaround with no compromise in wash quality.
Frequency Drive System
A simple single-motor inverter drive reaches maximum extraction speed more gradually and efficiently, reducing peak electricity amperage draw compared to multi-speed motor machines.
A Milnor 36026X8R can reduce fresh water consumption with its:
Three Simple Fast Fill Water Valves
Simple hot and cold water inlets are used to quickly fill the washer without fill level overshoot. A third water inlet is used to thoroughly dilute chemicals so that raw chemical does not directly contact and damage linens.
Save Money (Total Cost of Ownership)
There are many features designed into a 36026X8R washer-extractor to reduce your total cost of ownership - saving you money for years AFTER your initial investment.
Dynamically Tuned Suspension
Milnor's dynamically tuned suspension features a cutting-edge design that employs a unique, two-point suspension system. The center of mass is located where an imbalance would occur. With Smooth Coil Suspension System, constructed of highly-engineered fabric and rubber layered coils which provide low natural frequencies, vibration is constantly isolated, delivering smooth operation and performance. Dynamic forces are evenly applied for minimum vibration, which provides smooth extraction, less wear and tear, and longer machine life.
Feature Rich Machine
The 36026X8R offers enhanced flexibility in programming at an affordable cost, making it an excellent choice for your laundry.
Long Machine Life
Milnor machines typically last longer because of their legendary ruggedness, thoughtful design and dependable quality.
Milnor laundry machinery is sold worldwide by the most highly regarded dealer network. Dealers not only provide complete equipment packages, but also can help with planning and installation and offer technical support.
Tapered roller bearings have a large contact area - spreading force and contributing to long life. Front and rear bearings are fixed in the same housing, preventing damaging misalignment. And, a pressed-on basket means it does not need to be replaced when a bearing change becomes necessary. Milnor's bearing design is long proven while other companies keep experimenting.
Every Milnor design model is tested for a minimum of 1,000 consecutive hours in a high-extract, out-of-balance state - ensuring your machine is tough and will stand up to years of use.
|Capacity||100 lb.(45 kg)|
|Width||52 in.(1321 mm)|
|Depth||68 in.(1727 mm)|
|Height||76.37 in.(1940 mm)|
|Door Opening||20.38 in.(518 mm)|
|Shipping Weight||3904 lb.(1771 kg)|
|Cylinder Diameter||36 in.(914 mm)|
|Cylinder Depth||26 in.(660 mm)|
|Cylinder Volume||15.3 cu. ft.(433 L)|
|Distribution Speed||65 rpm|
|Extraction Speed||375 to 766 rpm|
|Extraction G-Force||300 Gs|
|Drive Motor||10 HP(7.46 kW)|
|Inlet Connection||0.75 in.(19 mm)|
|Drain Valve||3 in.(76 mm)|
Specifications and appearance are subject to change without notice.
