Pellerin Milnor Corporation

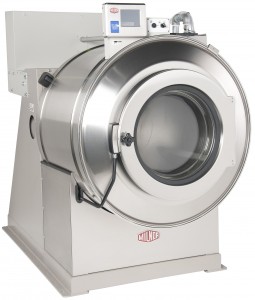

42030V6Z

Image Gallery

Video Gallery

Save Labor

The Milnor Model 42030V6Z provides multiple ways to save on your labor costs and improve employee efficiency, including:

MilTouch™ Professional, Full Color Touch Screen Computer Control

Utilizing resistive touch screen technology and full VGA resolution, the MilTouch control has a clear and informative display which shows current machine status info including total formula time and time elapsed. With complete programming flexibility, formulas can be developed on a PC, saved to USB external memory and uploaded with a screen touch. With intuitive fault diagnosis and relevant troubleshooting suggestions, the MilTouch control streamlines employee training and eliminates operator guesswork.

Overnight Bath Soak

The 42030V6Z overnight soak option eliminates the need for additional washes and production delays during shifts thanks to the extended time the stains are immersed in standing baths.

Proper Basket Design

Milnor's tall rib construction and precise cylinder speeds combine to provide excellent MAF - Mechanical Action Factor - ensuring goods get clean the first time, reducing time-consuming and costly rewashes.

RinSave® Water Saver

This innovative process facilitates significantly shorter formulas by eliminating up to two complete rinses per formula. This means the linens are processed faster because fewer steps are needed.

Back To Top

Save on Linen Replacement Costs

The second highest expense of a laundry is the cost of linen. The Milnor 42030V6Z can help you to extend linen life:

Safe Chemical Injection System

Chemicals are injected in the rear of the machine (unlike certain brands where chemicals are injected near the front of the machine at eye-level). Chemicals are diluted and flushed into the sump of the washer-extractor so that raw chemical does not come in direct contact with the linen or the stainless steel.

Proper Basket Design

Spacious wash cylinders provide more room for lift and drop action and for goods to open up and absorb wash and rinse water - ensuring goods get clean the first time, reducing rewashes.

Back To Top

Save Energy

A Milnor 42030V6Z can help to reduce your utility bills with its:

Proper Cylinder Design

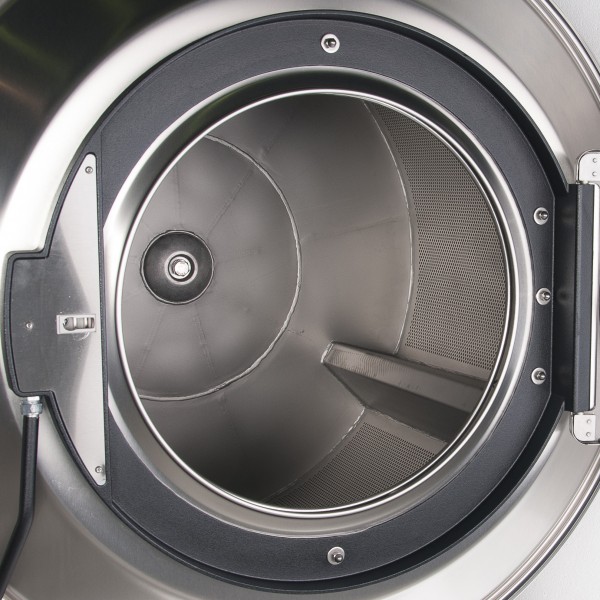

Milnor's bigger cylinder perforations provide better wash quality by promoting excellent interchange of the goods with water and chemistry, better rinsing by allowing rinse water to freely interact with the goods, and better extraction by allowing water to escape from goods easily and quickly. All components work together to ensure fewer costly rewashes and less drying time.

Reliable High 300 G-Force Extraction

Since the washer reaches 300 Gs each and every commanded time, more water is removed consistently from each load, resulting in shorter drying times - operating your dryer less each day can save hundreds of dollars per year in dryer fuel consumption and time.

RinSave® Water Saver

This innovative process facilitates significantly shorter formulas by eliminating up to two complete rinses per formula. This means fewer cycles and faster turnaround with no compromise in wash quality.

Frequency Drive System

A simple single-motor inverter drive reaches maximum extraction speed more gradually and efficiently, reducing peak electricity amperage draw compared to multi-speed motor machines.

Back To Top

Save Water

A Milnor 42030V6Z can reduce fresh water consumption with its:

RinSave® Water Saver

With the innovative RinSave feature, a rinse bath or two may be eliminated reducing water consumption by up to 0.4 gallons per pound of linen washed

Three Simple Fast-Fill Water Valves

Simple hot and cold water inlets are used to quickly fill the washer without fill level overshoot. A third water inlet is used to thoroughly dilute chemicals so that raw chemical does not directly contact and damage linens.

Back To Top

Save Money (Total Cost of Ownership)

There are many features designed into a 42030V6Z washer-extractor to reduce your total cost of ownership - saving you money for years AFTER your initial investment.

Feature Rich Machine

The 42030V6Z offers enhanced flexibility in programming at an affordable cost, making it an excellent choice for your laundry.

Long Machine Life

Milnor machines typically last longer because of their legendary ruggedness, thoughtful design and dependable quality.

Support Worldwide

Milnor laundry machinery is sold worldwide by the most highly regarded dealer network. Dealers not only provide complete equipment packages, but also can help with planning and installation and offer technical support.

Bearings

Tapered roller bearings have a large contact area - spreading force and contributing to long life. Front and rear bearings are fixed in the same housing, preventing damaging misalignment. And, a pressed-on basket means it does not need to be replaced when a bearing change becomes necessary. Milnor's bearing design is long proven while other companies keep experimenting.

L10 Life

Every Milnor design model is tested for a minimum of 1,000 consecutive hours in a high-extract, out-of-balance state - ensuring your machine is tough and will stand up to years of use.

Rugged, Proven Frame

Milnor frames are designed to prevent concentration of stress in one spot and all structural components are tied together for optimum stress dispersion. This proven structural integrity means your machines will last longer.

Back To Top

42030V6Z Specifications

Suspension Rigid
Cabinet Classic
Controller MilTouch™
Capacity 160 lb.(72 kg)
Width 50.31 in.(1278 mm)
Depth 84.56 in.(2148 mm)
Height 69.63 in.(1769 mm)
Door Opening 21.69 in.(551 mm)
Shipping Weight 2230 lb.(1012 kg)
Cylinder Open Pocket
Cylinder Diameter 42 in.(1067 mm)
Cylinder Depth 30 in.(762 mm)
Cylinder Volume 24 cu. ft.(680 L)
Wash Speed 25-41
Distribution Speed 60 rpm
Extraction Speed 200 to 710 rpm
Extraction G-Force 300 Gs
Extraction Group High
Drive Motor 15 HP(11.19 kW)
Inlet Connection 1.25 in.(32 mm)
Drain Valve 3 in.(76 mm)
Markets Wetclean
Specifications and appearance are subject to change without notice.
