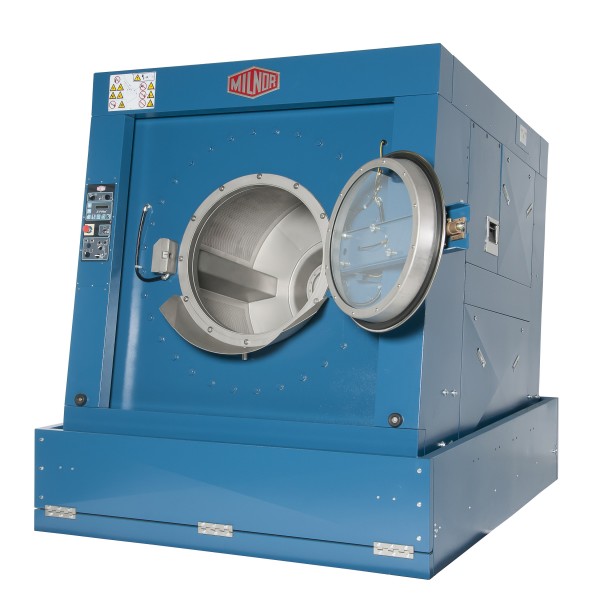

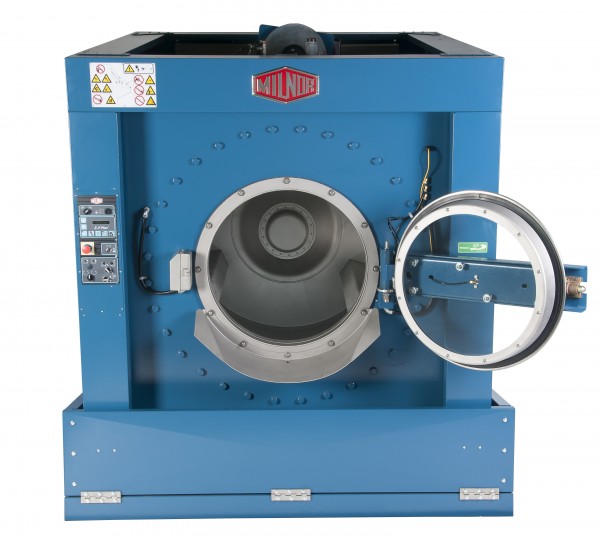

48040F7B
48040F7B Specifications
Suspension |
Suspended |
Controller |
E-P Plus® |
Capacity |
275 lb.(125 kg) |
Width |
85.5 in.(2172 mm) |
Depth |
111.98 in.(2844 mm) |
Height |
98.25 in.(2496 mm) |
Net Weight |
10,350 |
Cylinder |
Open Pocket |
Cylinder Diameter |
48 in.(1219 mm) |
Cylinder Depth |
40 in.(1016 mm) |
Cylinder Volume |
42 cu. ft.(1189 L) |
Wash Speed |
30-38 |
Distribution Speed |
66 rpm |
Extraction Speed |
320 to 664 rpm |
Extraction G-Force |
300 Gs |
Extraction Group |
High |
Drive Motor |
25 HP(18.64 kW) |
Inlet Connection |
1.5 in.(38 mm) |
Drain Valve |
4 in.(102 mm) |
Specifications and appearance are subject to change without notice.
