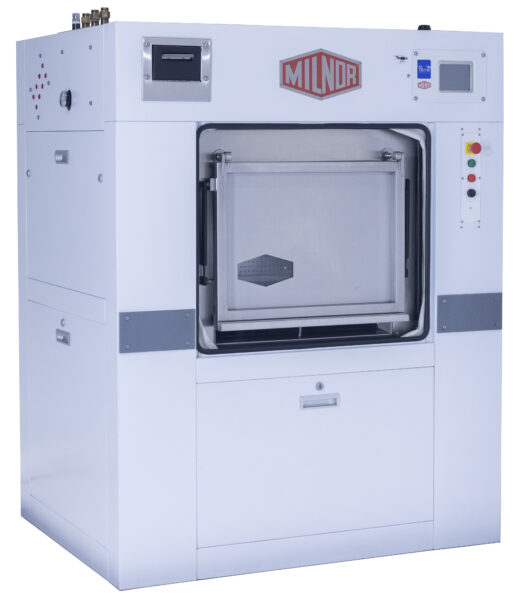

MWS70Z1
MWS70Z1 Specifications
| Suspension |
Suspended |
| Controller |
MilTouch™ |
| Capacity |
155 lb.(70 kg) |
| Width |
77.25 in.(1962 mm) |
| Depth |
57.88 in.(1470 mm) |
| Height |
79.75 in.(2026 mm) |
| Net Weight |
6106 lb.(2770 kg) |
| Cylinder |
Single Pocket |
| Cylinder Diameter |
41 in.(1041 mm) |
| Cylinder Depth |
32.7 in.(831 mm) |
| Cylinder Volume |
25 cu. ft.(708 L) |
| Wash Speed |
34 rpm |
| Distribution Speed |
58 rpm |
| Extraction Speed |
718 rpm |
| Extraction G-Force |
300 Gs |
| Extraction Group |
High |
| Drive Motor |
15 HP(11.19 kW) |
| Maximum Pressure |
29-87 |
| Inlet Connection |
1.25 in.(32 mm) |
| Drain Valve |
3 in.(76 mm) |
| Markets |
Health Care |
Specifications and appearance are subject to change without notice.
