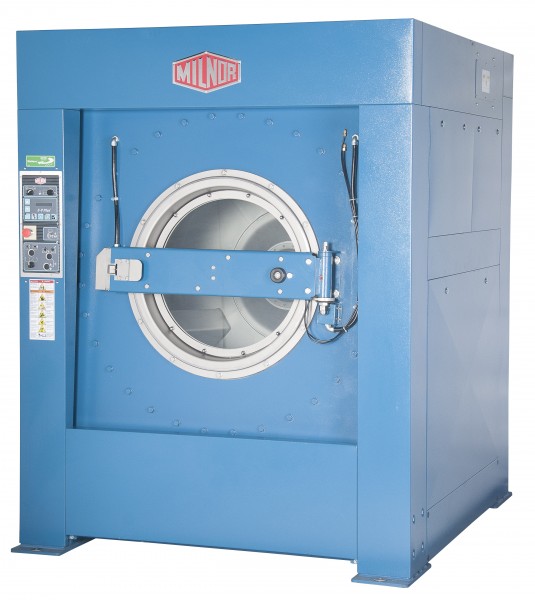

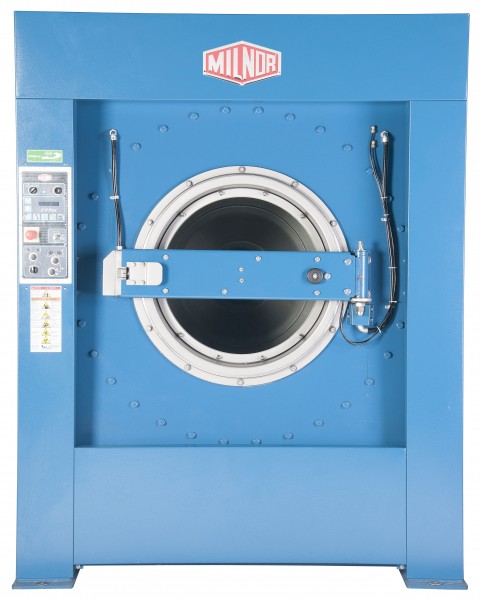

The Milnor Model MWF100J7 provides multiple ways to save on your labor costs and improve employee efficiency, including:
E-P Plus® Microprocessor
This comprehensive control is equipped with 30 pre-programmed formulas (including 10 each for eight industries) and allows the operator advanced flexibility. The E-P Plus operator may manually create or alter formulas, which are guided by the control itself to insure accurate and proper washing. E-P Plus also features universal temperature control, programmable cooldown, and programmable bath soak and overnight soak. The two-line display notifies the operator of key benchmarks (wash step, time remaining, etc.), which increases productivity and reduces downtime.
Overnight Bath Soak
The MWF100J7 overnight soak option eliminates the need for additional washes and production delays during shifts thanks to the extended time the stains are immersed in standing baths.
Proper Basket Design
Milnor's tall rib construction and precise cylinder speeds combine to provide excellent MAF - Mechanical Action Factor - ensuring goods get clean the first time, reducing time-consuming and costly rewashes.
RinSave® Water Saver
This innovative process facilitates significantly shorter formulas by eliminating up to two complete rinses per formula. This means the linens are processed faster because fewer steps are needed.
Save on Linen Replacement Costs
The second highest expense of a laundry is the cost of linen. The Milnor MWF100J7 can help you to extend linen life:
Safe Chemical Injection System
Chemicals are injected in the rear of the machine (unlike certain brands where chemicals are injected near the front of the machine at eye-level). Chemicals are diluted and flushed into the sump of the washer-extractor so that raw chemical does not come in direct contact with the linen or the stainless steel.
Proper Basket Design
Spacious wash cylinders provide more room for lift and drop action and for goods to open up and absorb wash and rinse water - ensuring goods get clean the first time, reducing rewashes.
A Milnor MWF100J7 can help to reduce your utility bills with its:
Proper Cylinder Design
Milnor's bigger cylinder perforations provide better wash quality by promoting excellent interchange of the goods with water and chemistry, better rinsing by allowing rinse water to freely interact with the goods, and better extraction by allowing water to escape from goods easily and quickly. All components work together to ensure fewer costly rewashes and less drying time.
Reliable High 300 G-Force Extraction
Since the washer reaches 300 Gs each and every commanded time, more water is removed consistently from each load, resulting in shorter drying times - operating your dryer less each day can save hundreds of dollars per year in dryer fuel consumption and time.
RinSave® Water Saver
This innovative process facilitates significantly shorter formulas by eliminating up to two complete rinses per formula. This means fewer cycles and faster turnaround with no compromise in wash quality.
Frequency Drive System
A simple single-motor inverter drive reaches maximum extraction speed more gradually and efficiently, reducing peak electricity amperage draw compared to multi-speed motor machines.
Save Money (Total Cost of Ownership)
There are many features designed into a MWF100J7 washer-extractor to reduce your total cost of ownership - saving you money for years AFTER your initial investment.
Dynamically Tuned Suspension
Milnor's dynamically tuned suspension features a cutting-edge design that employs a unique, two-point suspension system. The center of mass is located where an imbalance would occur. With Smooth Coil Suspension System, constructed of highly-engineered fabric and rubber layered coils which provide low natural frequencies, vibration is constantly isolated, delivering smooth operation and performance. Dynamic forces are evenly applied for minimum vibration, which provides smooth extraction, less wear and tear, and longer machine life.
Feature Rich Machine
The MWF100J7 offers enhanced flexibility in programming at an affordable cost, making it an excellent choice for your laundry.
Long Machine Life
Milnor machines typically last longer because of their legendary ruggedness, thoughtful design and dependable quality.
Milnor laundry machinery is sold worldwide by the most highly regarded dealer network. Dealers not only provide complete equipment packages, but also can help with planning and installation and offer technical support.
Tapered roller bearings have a large contact area - spreading force and contributing to long life. Front and rear bearings are fixed in the same housing, preventing damaging misalignment. And, a pressed-on basket means it does not need to be replaced when a bearing change becomes necessary. Milnor's bearing design is long proven while other companies keep experimenting.
Every Milnor design model is tested for a minimum of 1,000 consecutive hours in a high-extract, out-of-balance state - ensuring your machine is tough and will stand up to years of use.
|Capacity||220 lb.(100 kg)|
|Width||70 in.(1778 mm)|
|Depth||79.7 in.(2024 mm)|
|Height||90.58 in.(2301 mm)|
|Door Opening||30 in.(762 mm)|
|Net Weight||7247 lb.(3287 kg)|
|Cylinder Diameter||48 in.(1219 mm)|
|Cylinder Depth||32 in.(813 mm)|
|Cylinder Volume||33.5 cu. ft.(949 L)|
|Distribution Speed||66 rpm|
|Extraction Speed||664 rpm|
|Extraction G-Force||300 Gs|
|Drive Motor||20 HP(14.91 kW)|
|Inlet Connection||1.5 in.(38 mm)|
|Drain Valve||4 in.(102 mm)|
Specifications and appearance are subject to change without notice.
